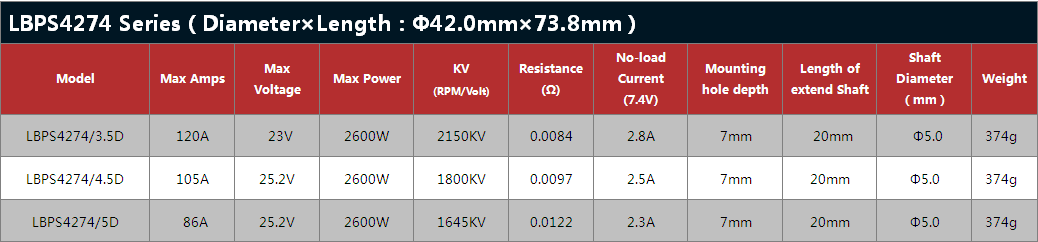

| LBPS4274 Series （Diameter×Length：Φ42mm×73.8mm） | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | Max Amps | Max Voltage | Max Power | KV (RPM/Volt) | Resistance | No-load Current (15V) | Mounting hole depth | Length of extend Shaft | Shaft Diameter （mm） | Weight |
| LBPS4274 | 120A | 23V | 2600W | 2150KV | 0.0084 | 2.8A | 7mm | 20mm | Φ5.0 | 374g |
| LBPS4274 | 105A | 25.2V | 2600W | 1800KV | 0.0097 | 2.5A | 7mm | 20mm | Φ5.0 | 374g |
| LBPS4274 | 86A | 25.2V | 2600W | 1645KV | 0.0122 | 2.3A | 7mm | 20mm | Φ5.0 | 374g |
