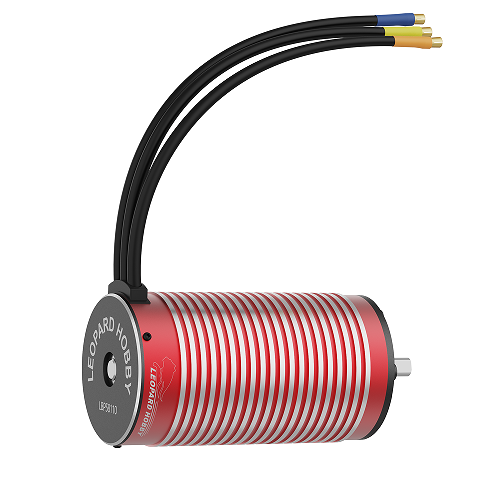

LBP58110
Types:780KV、520KV、380KV、1430KV、950KV、720KV、640KV.
Product Details
LBP58110 Series （Diameter×Length：Φ57.8mm×110mm） | ||||||||||
Model | Max | Max | Max | KV (RPM/Volt) | Resistance (Ω) | No-load Current (15V) | Mounting hole depth | Length of extend Shaft | Shaft Diameter（mm） | Weight |
LBP58110/2Y | 170A | 44V | 7600W | 780KV | 0.0072 | 3.7A | 8mm | 30MM | Φ8.0 | 1160g |
LBP58110/3Y | 113A | 67V | 7600W | 520KV | 0.0152 | 2.1A | 8mm | 30MM | Φ8.0 | 1160g |
LBP58110/4Y | 82A | 92V | 7600W | 380KV | 0.0265 | 1.8A | 8mm | 30MM | Φ8.0 | 1160g |
LBP58110/2D | 300A | 24V | 7600W | 1430KV | 0.0027 | 7.4A | 8mm | 30MM | Φ8.0 | 1160g |
LBP58110/3D | 210A | 36V | 7600W | 950KV | 0.0055 | 4.3A | 8mm | 30MM | Φ8.0 | 1160g |
LBP58110/4D | 158A | 48V | 7600W | 720KV | 0.0092 | 3.1A | 8mm | 30MM | Φ8.0 | 1160g |
