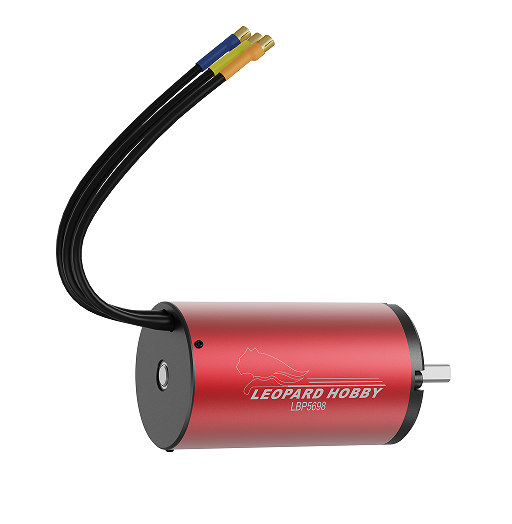

LBP5698
Types:910KV、600KV、460KV、1100KV、835KV.
Product Details

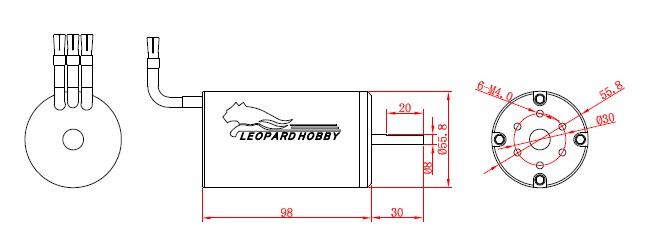

LBP5698 Series （Diameter×Length：Φ55.8mm×98mm） | ||||||||||
Model | Max | Max | Max | KV (RPM/Volt) | Resistance (Ω) | No-load Current (15V) | Mounting hole depth | Length of extend Shaft | Shaft Diameter（mm） | Weight |
LBP5698/2Y | 165A | 38V | 6500W | 910KV | 0.0069 | 3.4A | 8mm | 30MM | Φ8.0 | 1020g |
LBP5698/3Y | 105A | 58V | 6500W | 600KV | 0.014 | 1.8A | 8mm | 30MM | Φ8.0 | 1020g |
LBP5698/4Y | 80A | 76V | 6500W | 460KV | 0.0255 | 1.2A | 8mm | 30MM | Φ8.0 | 1020g |
LBP5698/3D | 198A | 32V | 6500W | 1100KV | 0.0053 | 4.0A | 8mm | 30MM | Φ8.0 | 1020g |
LBP5698/4D | 150A | 42V | 6500W | 835KV | 0.0095 | 2.9A | 8mm | 30MM | Φ8.0 | 1020g |
