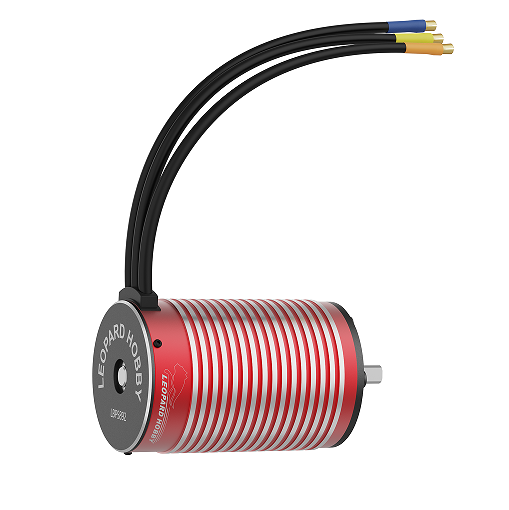

LBP5892
Types:1090KV、730KV、540KV、1340KV、1000KV.
Product Details

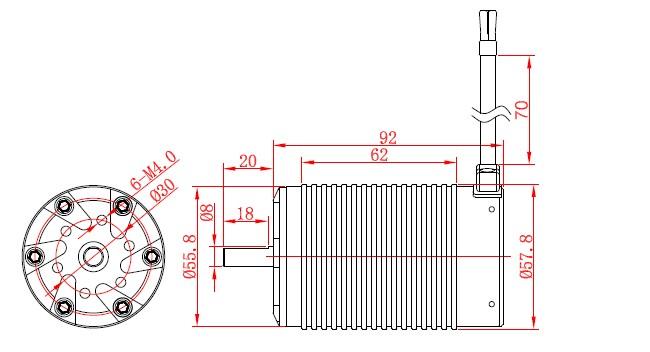

LBP5892 Series （Diameter×Length：Φ57.8mm×92mm） | ||||||||||
Model | Max | Max | Max | KV (RPM/Volt) | Resistance (Ω) | No-load Current (15V) | Mounting hole depth | Length of extend Shaft | Shaft Diameter（mm） | Weight |
LBP5892/2Y | 160A | 35V | 5500W | 1090KV | 0.006 | 3.1A | 8mm | 20mm | Φ6.0/Φ8.0 | 880g |
LBP5892/3Y | 110A | 50V | 5500W | 730KV | 0.013 | 1.7A | 8mm | 20mm | Φ6.0/Φ8.0 | 880g |
LBP5892/4Y | 88A | 74V | 5500W | 540KV | 0.0221 | 1.2A | 8mm | 20mm | Φ6.0/Φ8.0 | 880g |
LBP5892/3D | 180A | 29V | 5500W | 1340KV | 0.0046 | 4.1A | 8mm | 20mm | Φ6.0/Φ8.0 | 880g |
LBP5892/4D | 140A | 40V | 5500W | 1000KV | 0.0073 | 3A | 8mm | 20mm | Φ6.0/Φ8.0 | 880g |
